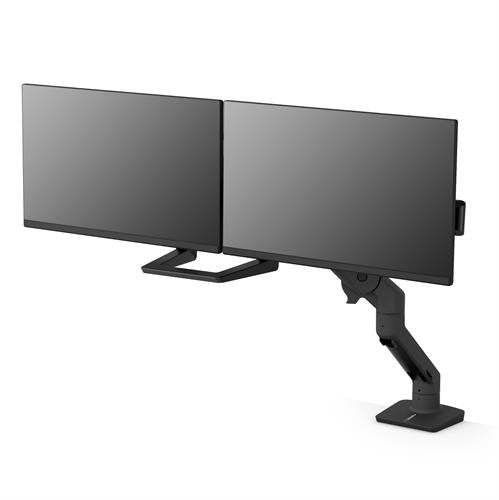

Ergotron HX Desk Dual Monitor Arm Matte Black

Sold out
$481.00
SKU 45-476-224

Choose a monitor arm that’s as adaptable as you. With the HX Desk Dual Monitor Arm, you can easily reposition two 32" monitors using patented Constant Force™ Technology. The hinged bow lets you easily pan your monitors for screen sharing and the most comfortable views. Add a triple monitor bow kit to up your screen count and your productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

  • Personalized views
    Independent pivots rotate, pan and tilt each monitor
  • Rotation stop
    Avoid hitting cube walls with a rotation-stop on the base
  • Saves space
    Places screen in the best view to tackle each to-do
  • Sleek build
    Cables stay hidden under the arm and through the extension
  • Sustainable choice
    BIFMA level® 2 certified for a low environmental and social impact
  • Quality design
    Built for thousands of movements by passing 10,000-cycle test

Specifications

  • UPC: 698833084481
  • Part Number (color):
  • 45-476-216 (white)
  • 45-476-026 (polished aluminum)
  • 45-476-224 (matte black)
  • Description: HX Desk Dual Monitor Arm
  • Includes arm, extension, hinge bow, two monitor pivots, handle, desk clamp, grommet mount, mounting hardware
  • Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
  • Grommet Mount (included) attaches through surface holes
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Portrait/landscape rotation with lockout
  • Streamline cable management that routes cables under arm and within extension
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • * Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
  • Monitor depth greater than 2.5" (6.4 cm) may diminish capacity
  • ** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
  • Hinge bow turns 40° inward and 90° outward
  • † Tilt Range: 70° backward, 5° forward
  • Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
  • Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
  • Product Weight: 22.75 lb (10.3 kg)
  • Shipping Dimensions: 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)
  • Shipping Weight: 26.9 lbs (12.2 kg)
  • Warranty: Ten years
