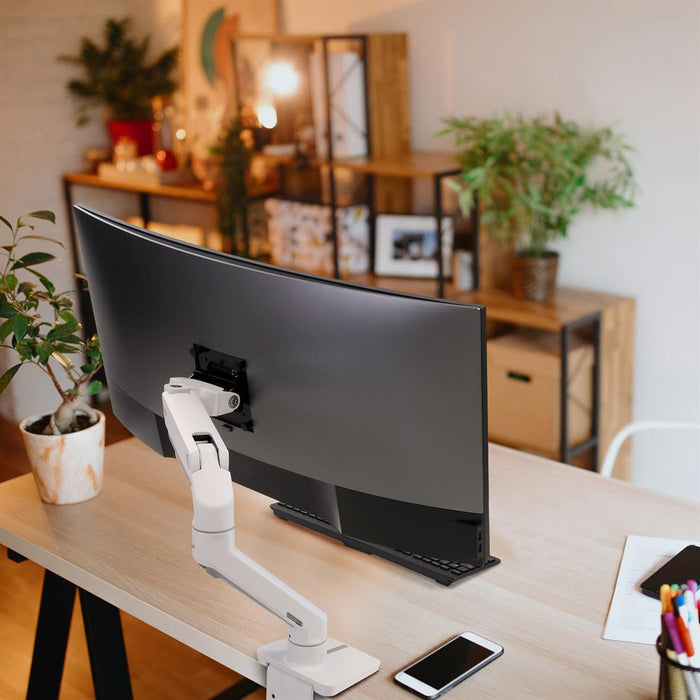

Ergotron HX Desk Monitor Arm White

$374.00
SKU 45-475-216

Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

NOTE: To use this arm with the ultra-wide, curved Samsung 49" Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required. See Tech Specs.

  • Comfortable fit
    Offers ergonomic monitor positioning using patented Constant Force™ Technology
  • Rotation stop
    Avoid hitting cube walls with a rotation-stop on the base
  • Saves space
    Places screen in the best view to tackle each to-do
  • Sleek build
    Cables stay hidden under the arm and through the extension
  • Sustainable choice
    BIFMA level® 2 certified for a low environmental and social impact
  • Quality design
    Built for thousands of movements by passing 10,000-cycle test

Specifications

  • UPC: 698833054491
  • Part Number: 45-475-216
  • Description: HX Desk Monitor Arm (white)
  • Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Portrait/landscape rotation with lockout
  • Streamlined cable management routes cables under arm and within extension
  • Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
  • Grommet mount attaches through surface holes
  • § Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required
  • To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)
  • * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
  • ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • † Tilt Range: 70° backward, 5° forward
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
  • Product Weight: 15.25 lbs (6.9 kg)
  • Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
  • Shipping Weight: 18.3 lbs (8.3 kg)
  • Warranty: Ten years
