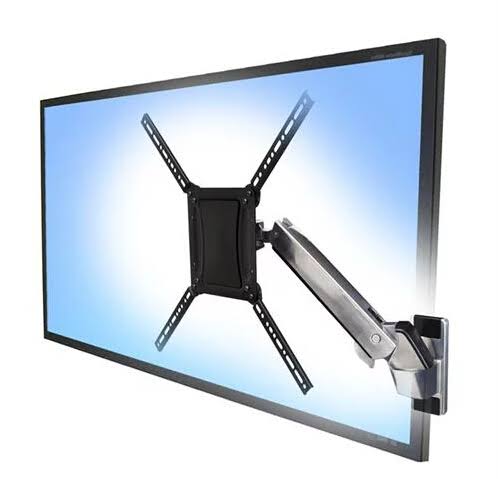

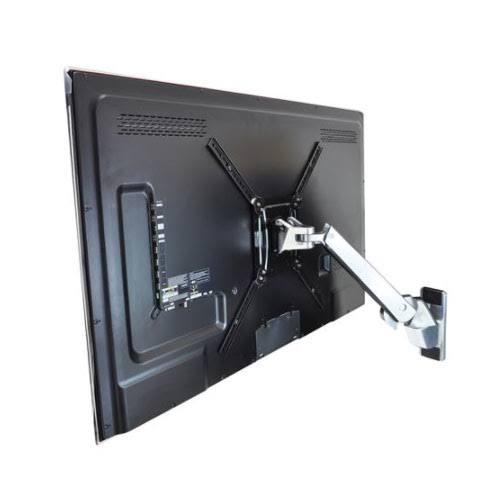

Ergotron Heavy Duty Interactive Arm Lcd Wall Mount Polished Aluminium Max Lcd Size 60in Max Weight

SKU 45-296-026

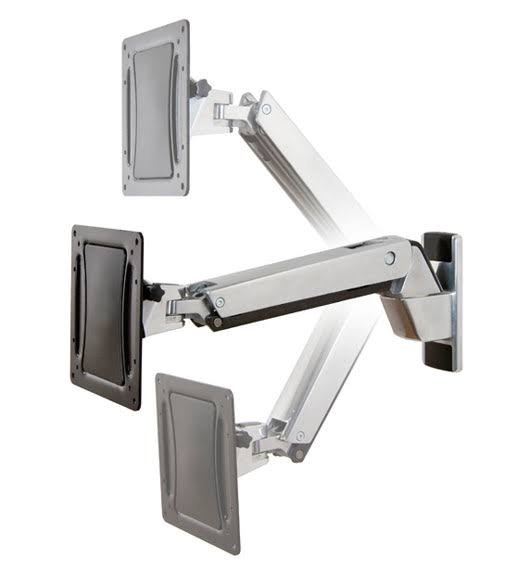

Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.

Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.

  • Patented Constant Force™ technology enables light-touch adjustments

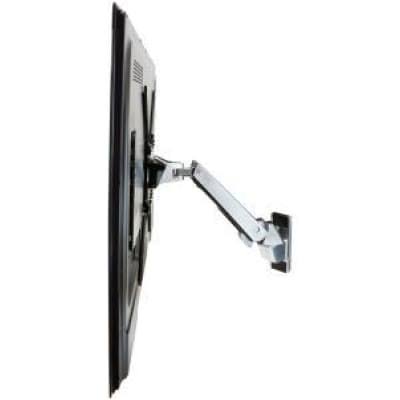

  • Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
  • The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
  • Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
  • Gravity pivot enables tilting capabilities without the need of knobs or levers
  • Improves ergonomic viewing for TVs/displays mounted high on the wall
  • Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
  • Tilt and pan for maximum viewing flexibility
  • Level the screen at any position with +/- 5º of post-installation rotation
  • Cable management clips on the underside of the arm route and hide wires
  • Passes Ergotron’s 7,500-cycle motion test, which ensures a minimum of five years trouble-free height adjustment


  • Part Number: 45-296-026
  • Description: Interactive Arm, HD, Heavy Duty (polished aluminum)
  • Includes arm, wall mount bracket, VESA adapter brackets, complete hardware kit
  • † Tilts forward 15°, tilts back 10°
  • ‡ Rotation of +/-5° provides leveling adjustment of screen in any position
  • * Mounting Standards: VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
  • Note: Due to the variety of wall constructions, consider using professional installers to attach this product. Professional installation is strongly recommended when attaching this product above fireplaces
  • To fix the tilt position of the display in place, use the lock-down knob on the gravity pivot
  • Shipping Dimensions: 26" x 12" x 7.5" (660 x 305 x 191 mm)
  • Shipping Weight: 23 lbs (10.5 kg)
  • Warranty: Five (5) years
