HP 1820-8G-Poe+ (65W) Switch, 4 X Gig Poe+ & 4 X Gig Ports, L2, Web-Managed, Life Wty

by HPE
$503.80
$264.95
SKU J9982A
HP

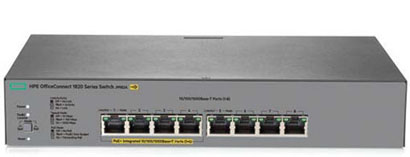

HPE OfficeConnect 1820 8G PoE+ (65W) Switch

The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

What's new

  • Intuitive Web management interface with an enhanced navigation pane.
  • Non-PoE and PoE+ models for deployment flexibility.
  • Fanless design available on four models for quiet operation.
  • Customizable features for enhanced network performance.
  • Limited Lifetime Warranty.

Features


Easy-to-Use, Simple to Deploy and Manage

The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.

The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

Some models are of a fan-less design, making them quiet for office deployments.

Energy Efficiency and Lower TCO

The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.

The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.

All switches are covered by a Limited Lifetime Warranty.

Quality of Service (QoS)

The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.

Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.

IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.



Specifications

General
Device Type
Switch - 8 ports - Managed

Enclosure Type
Desktop, rack-mountable - 1U

Subtype
Gigabit Ethernet

Ports
4 x 10/100/1000 (PoE+) + 4 x 10/100/1000

Power Over Ethernet (PoE)
PoE+

PoE Budget
65 W

Performance
Throughput (64-byte packet size) : up to 11.9 Mpps
Switching capacity : 16 Gbps

MAC Address Table Size
8000 entries

Jumbo Frame Support
9220 bytes

Remote Management Protocol
SNMP 1, SNMP 2c, HTTPS

Encryption Algorithm
SSL

Features
Flow control, full duplex capability, Layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Quality of Service (QoS), Jumbo Frames support, LLDP support

Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)

Processor
1 x ARM Cortex-A9 : 400 MHz

RAM
128 MB - SDRAM

Flash Memory
16 MB

Expansion / Connectivity
Interfaces
4 x 1000Base-T - RJ-45 - PoE+
4 x 1000Base-T - RJ-45

Power
Power Device
Internal power supply

Voltage Required
AC 120/230 V ( 50/60 Hz )

Miscellaneous
Rack Mounting Kit
Included

MTBF
112.36 years

Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950-1, VCCI Class A

Dimensions & Weight
Width
25.4 cm

Depth
15.95 cm

Height
4.39 cm

Weight
910 g

Manufacturer Warranty
Service & Support
Limited lifetime warranty

Service & Support Details
Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters
Min Operating Temperature
0 °C

Max Operating Temperature
40 °C

Humidity Range Operating
15 - 95% (non-condensing)

Min Storage Temperature
-40 °C

Max Storage Temperature
70 °C

Humidity Range Storage
15 - 95% (non-condensing)
