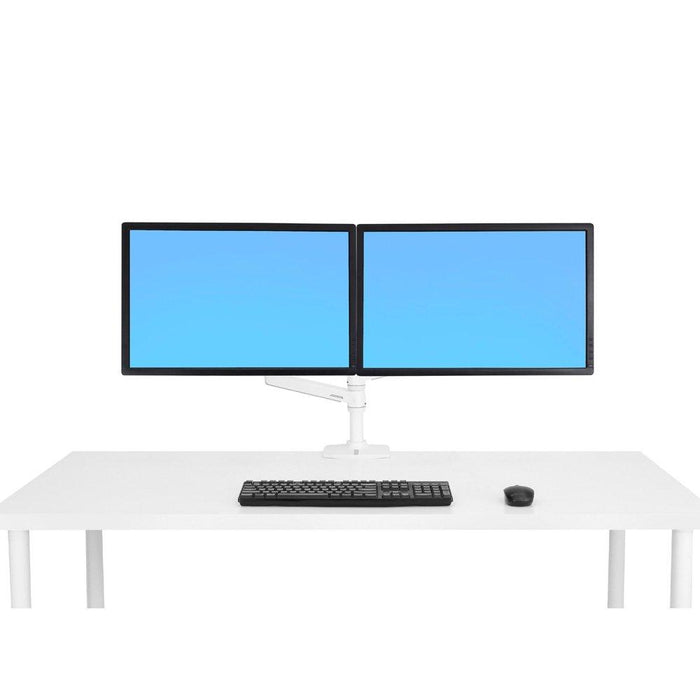

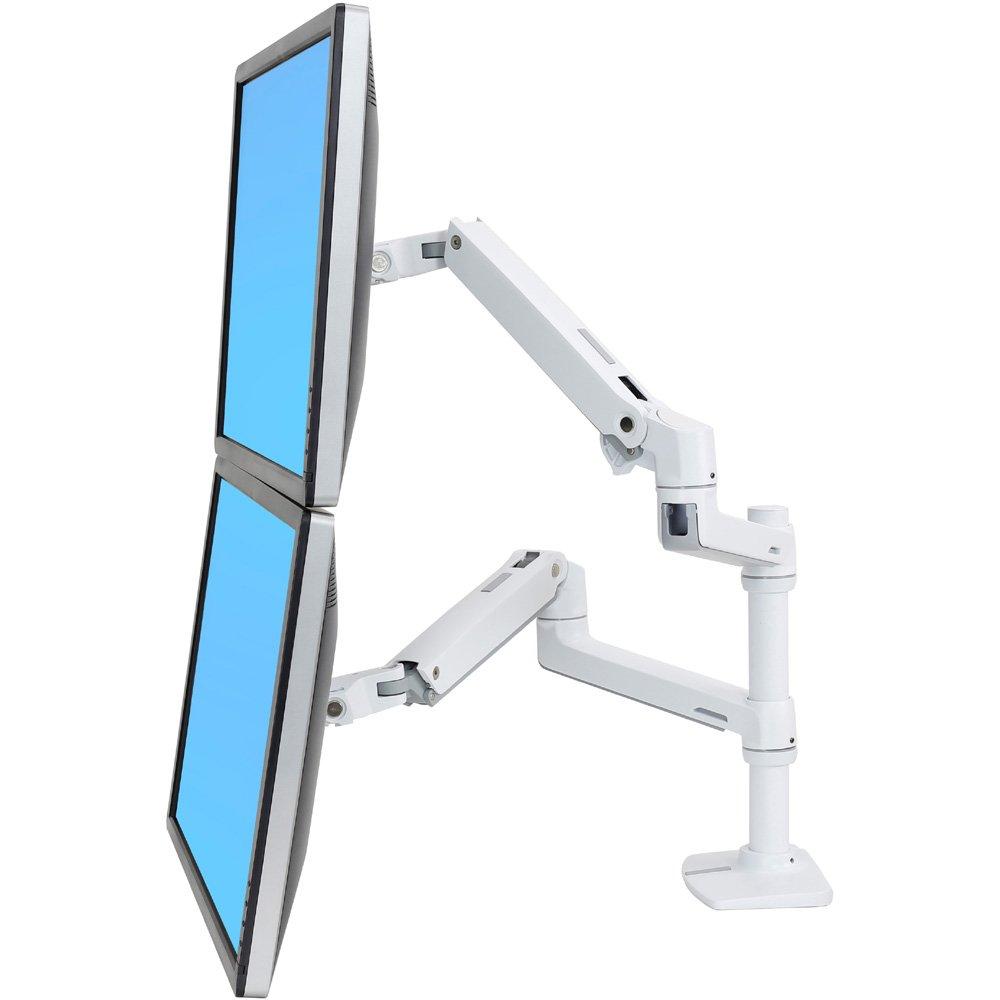

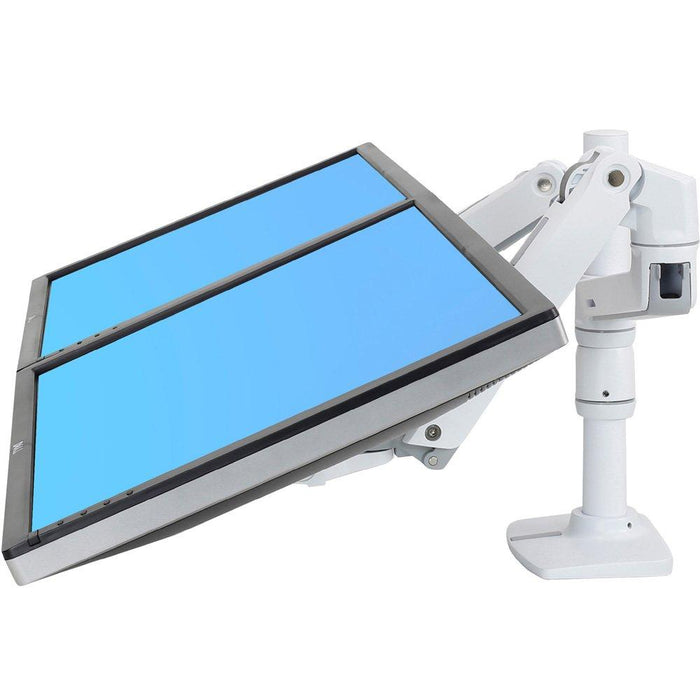

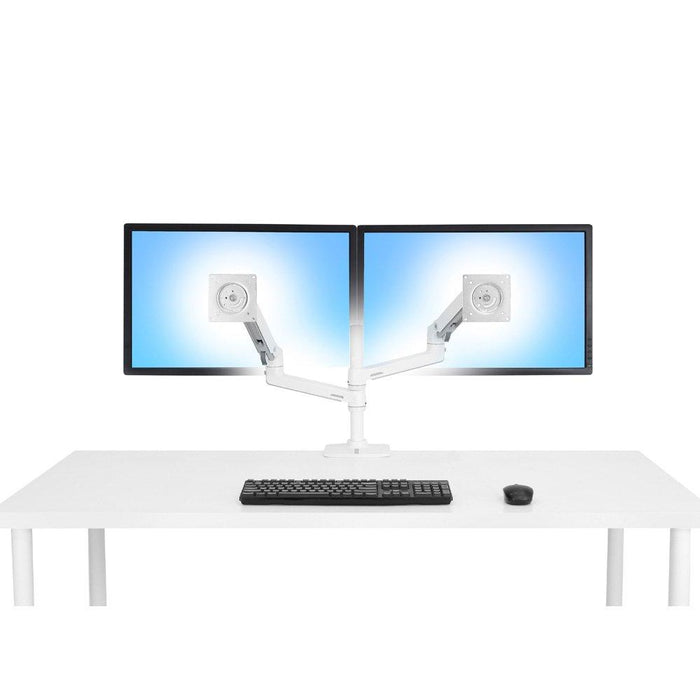

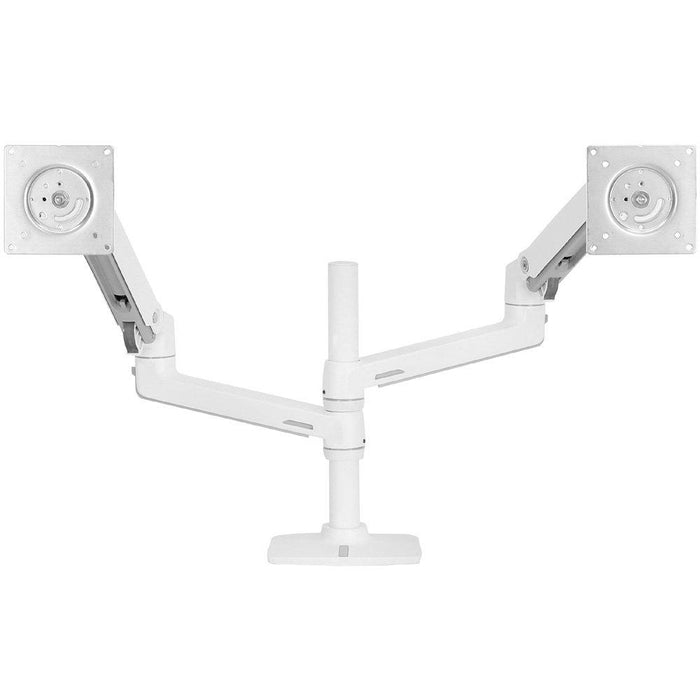

Ergotron Lx Dual Stacking Arm No Grommet Mount Bright White Texture

Sold out
SKU 45-492-216

Durable steel and aluminum construction! Create a productive multi-display configuration that lifts screens up to where they’re easier to see while reclaiming valuable worksurface.

Reposition your LCDs with just a touch. Up. Down. Forward. Back. Ergotron 45-492-216 LX provides unparalleled range of motion. Save time by using multiple applications at once - eliminate toggling back and forth between documents and programs.



  • Frees up the desktop to increase workspace

  • Easy to use: Simple installation and effortless operation

  • Frees up the desktop to increase workspace

  • Cable management feature routes cables under the arm, out of the way

  • Easily turn one or both screens from landscape mode to portrait mode - view entire pages without scrolling

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Patented Constant Force lift-and-pivot motion technology



Part Number 45-492-216
Description LX Dual Monitor Arm, Stacking (white)
  • Two (2) LCD arms and extensions

  • Pole

  • Desk clamp

Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
  • Steel and aluminum construction offers greater durability and enhanced aesthetics

  • Snap-fit cap secures interface of arms to extensions for greater stability

  • New clamp and grommet mount base ensures greater stability of display and arm

Maximum Outside Height of Display To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side
Weight Capacity Individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk Clamp Attaches to edge up to 2.6" (66 mm) thick
Grommet Mount A separately ordered grommet mount accessory (98-035) is available to attach the arm through a hole in the desktop
Shipping Dimensions 19.25" x 15.25" x 9" (487 x 387 x 229 mm)
Shipping Weight 16 lbs (7.2 kg)
Warranty Ten (10) years
