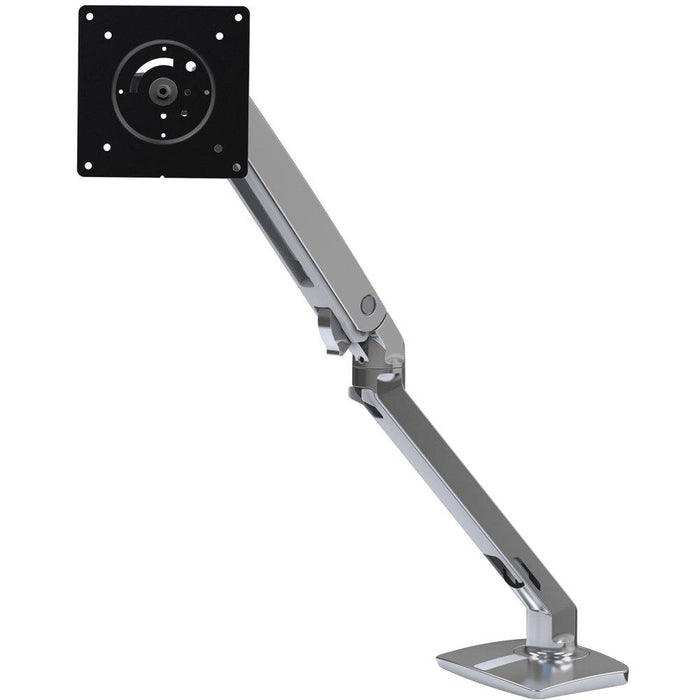

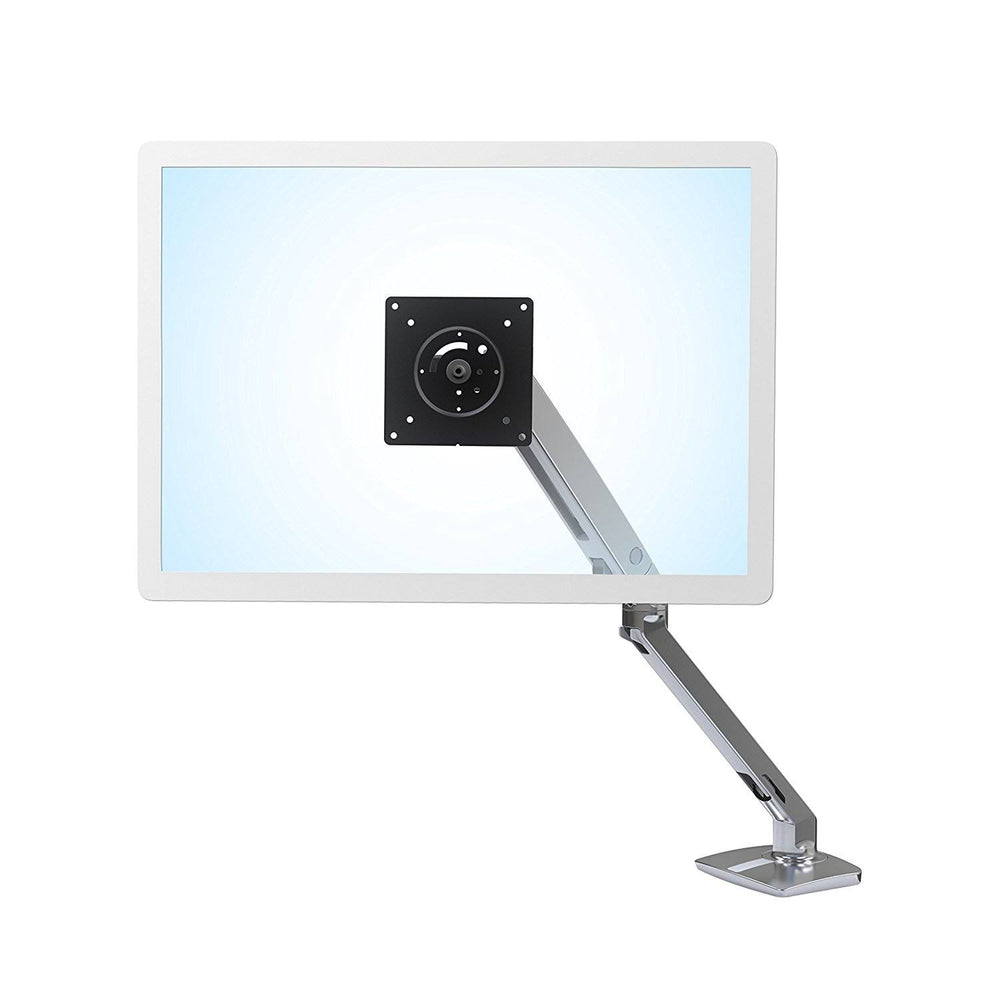

Ergotron MXV Desk Monitor Arm Polished Aluminium

SKU 45-486-026

Style meets functionality with the MXV Desk Monitor Arm. Designed with a modern “V” shape, this sleek and lightweight arm keeps your screen stable as you adjust it for how you want to work. Slimmer than our LX family, the MVX fits in tight spaces and contains the cable chaos with thoughtful cable management.


  • Comfortable fit
    Offers full monitor movement and improved ergonomics
  • Full-featured
    Provides 13" (33 cm) of height adjustment, integrated tilt and more
  • Protect your space
    Rotation-stop base keeps arm from hitting the wall or other desks
  • Fully assembled
    Just attach to your desk, add your monitor and adjust the tension
  • Low profile
    Attaches securely with a desk clamp that fits in tight areas
  • Quality design
    Built for years of use by passing our 10,000-cycle motion test



  • UPC: 698833057539
  • Part Number (color):
  • 45-486-216 (white)
  • 45-486-026 (polished aluminum)
  • 45-486-224 (matte black)
  • Description: MXV Desk Mount LCD Monitor Arm
  • Includes fully assembled arm, two-piece desk clamp, mounting hardware
  • Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Mounting Options: Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick
  • An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-110
  • Desk clamp has anti-rotation screws to prevent base from slipping
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • † Tilt Range: 90° backward, 90° forward
  • ‡ Pan Range: 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360°
  • Extension Range: 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
  • Product Weight: 6.4 lbs (2.9 kg)
  • Shipping Dimensions: 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm)
  • Shipping Weight: 7.5 lbs (3.4 kg)
  • Warranty: Ten (10) years
