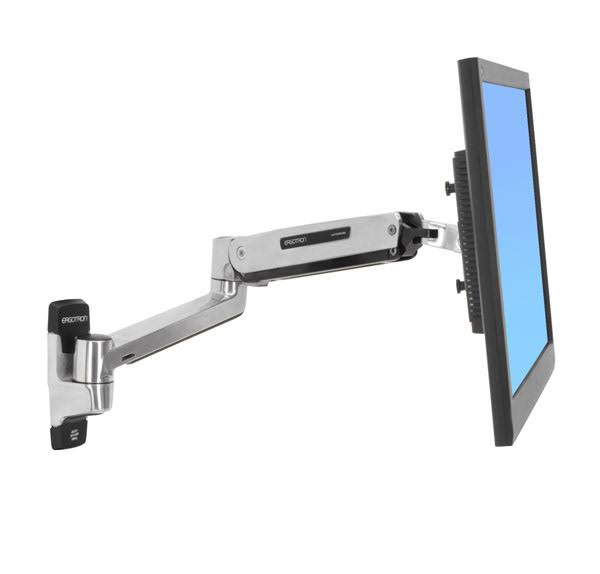

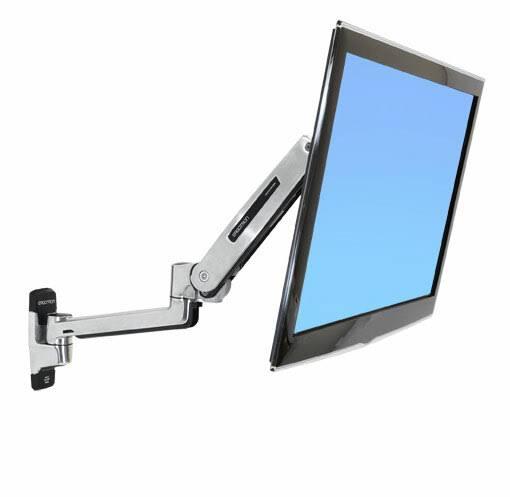

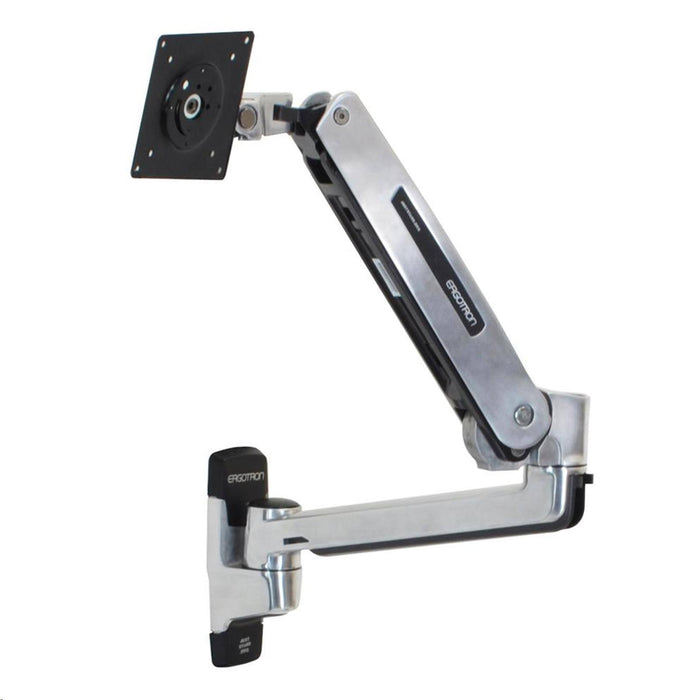

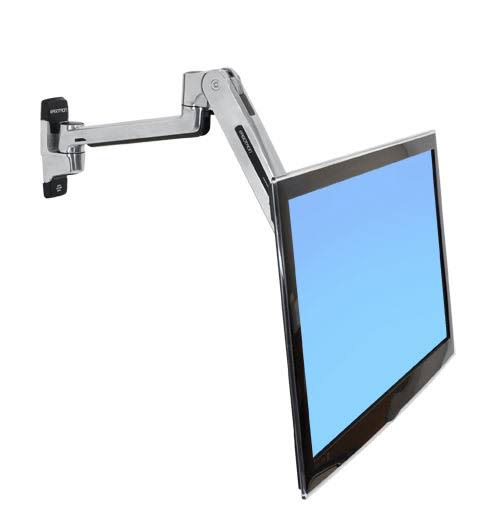

Ergotron LX Sit-Stand Wall Mount Lcd Arm, Polished

SKU 45-353-026


  • Comfortable fit
    Offers full monitor movement and improved ergonomics
  • More motion
    20" (51 cm) of height adjustment lets you work sitting or standing
  • Saves space
    Folds within inches of the wall when not in use
  • Large extension

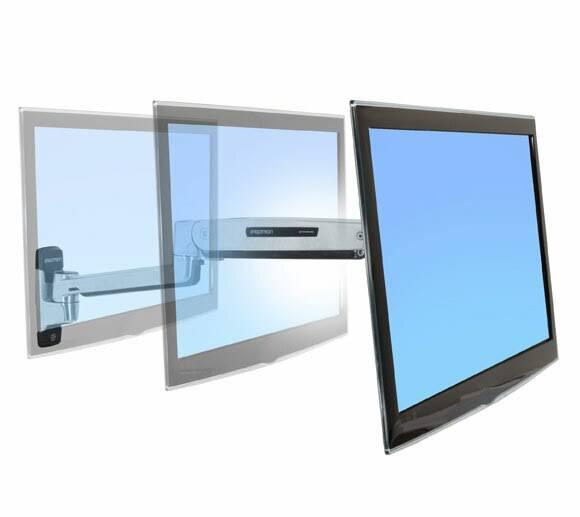

    Screen can extend 33" (84 cm) with 62" (157 cm) of side-to-side motion
  • Sleek build
    Streamlined look enhances your work area
  • Quality design
    Built for thousands of movements by passing 10,000-cycle test



  • UPC: 698833028492
  • Part Number: 45-353-026
  • Description: LX Sit-Stand Wall Mount LCD Arm (polished aluminum)
  • Includes LX sit-stand arm, extension, wall-mount base, VESA brackets

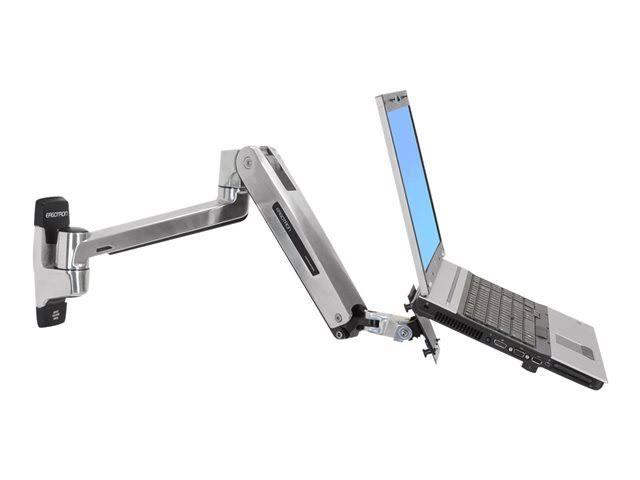

  • Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • * Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
  • † Monitor tilts 70° up and 5° down
  • ** Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
  • Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
  • ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
  • Base includes theft-deterrent anchor holes for cable locks
  • Patented Constant Force™ motion technology provides premium ease-of-use display adjustment

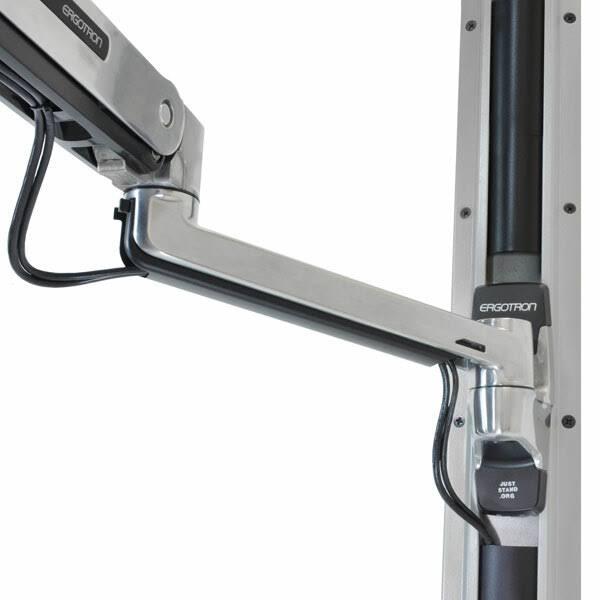

  • Cable management feature routes cables under the arm, out of the way
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
  • Product Weight: 11 lbs (5 kg)
  • Shipping Dimensions: 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
  • Shipping Weight: 12.6 lbs (5.7 kg)
  • Warranty: Ten years
