Ergotron Interactive Wall Mount Monitor Arm

Sold out
SKU 45-304-026

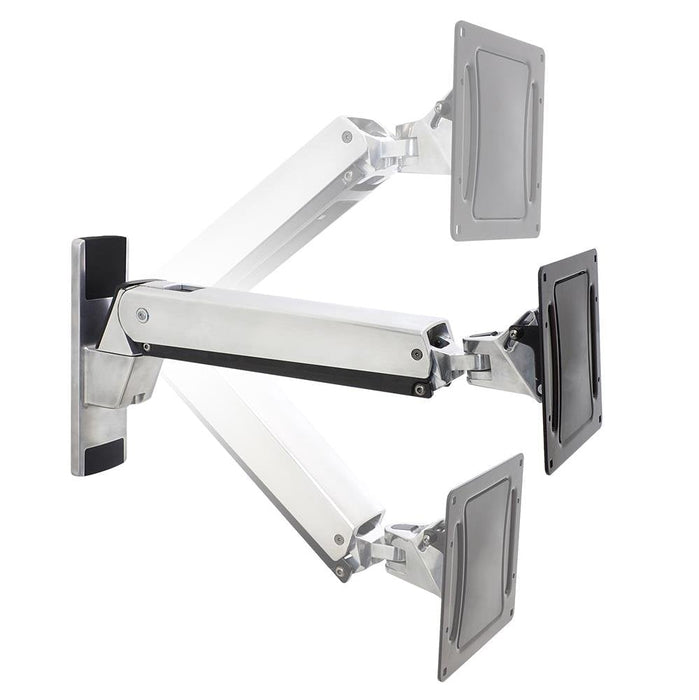

Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 20.75-inch (53 cm) motion to either side. Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.

  • Patented Constant Force™ technology enables light-touch adjustments
  • Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use
  • Gravity pivot enables tilting capabilities without the need of knobs or levers
  • Improves ergonomic viewing for TVs/displays mounted high on the wall
  • Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
  • Tilt and pan for maximum viewing flexibility
  • Cable management clips on the underside of the arm to route and hide cords
  • Passes Ergotron’s 7,500-cycle motion test, ensuring years of trouble-free height adjustment


  • UPC: 698833021905
  • Part Number: 45-304-026
  • Description: Interactive Arm, VHD, Very Heavy Duty (polished aluminum)
  • Includes arm, wall mount bracket, VESA adapter brackets, complete hardware kit
  • † Tilts forward 15°, tilts back 10°
  • ‡ Rotation of +/-5° provides leveling adjustment of screen in any position
  • * Mounting Standards: VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
  • To fix the tilt position of the display in place, use the lock-down knob on the gravity pivot
  • Level the screen at any position with +/- 5º of post-installation rotation
  • Product Weight: 26.2 lbs (11.9 kg)
  • Shipping Dimensions: 30.5" x 13" x 8" (77.5 x 33 x 20 cm)
  • Shipping Weight: 31.5 lbs (14.3 kg)
  • Warranty: Five years
